FD-7042 // CYCLIC-COLLECTIVE CONTROL LINKAGE

Control that survives the maneuver.

Forged, machined, and qualified control linkages for military and commercial rotorcraft platforms.

Request Technical Datasheet View Capabilities
FD-7042 cyclic and collective control lever assembly with reference geometry callouts, machined titanium and steel

PIVOT BEARING
±0.02mm BORE TOL.

ACTUATION GRIP
KNURLED, GLOVE-RATED

ROD-END LINKAGE
ZERO-BACKLASH PIVOT

FD-7042: reference geometry, primary linkage assembly

Qualified for integration on

Multi-role Rotorcraft Attack Rotorcraft Utility & Transport Platforms Naval Rotary-Wing

CAPABILITIES

Machined in-house. Qualified before it ships.

01

5-Axis Precision Machining

Simultaneous 5-axis CNC on forged blanks, held to ±0.02mm on bearing bore concentricity.

02

Forged Alloy Construction

42CrMo4 and Ti-6Al-4V forgings, sourced and traced from mill certificate to finished part.

03

Fatigue & Load Qualification

Every lever geometry cycles through shot-peened fatigue testing before design release.

04

Surface & Corrosion Treatment

Class 3 hardcoat anodize and cadmium-free corrosion protection for marine and desert theaters.

FEATURED ASSEMBLY

FD-7042
Cyclic-Collective Control Linkage

A single forged-and-machined assembly translating pilot input into swashplate motion across yaw, pitch, and collective axes. Spherical rod-end bearings at every pivot for zero-backlash actuation.

Ultimate tensile load38.2 kN
Qualified service life12,000 flight hours
Operating temperature−54C to 121C
Mass1.86 kg
Bearing typeSelf-lubricating spherical rod-end

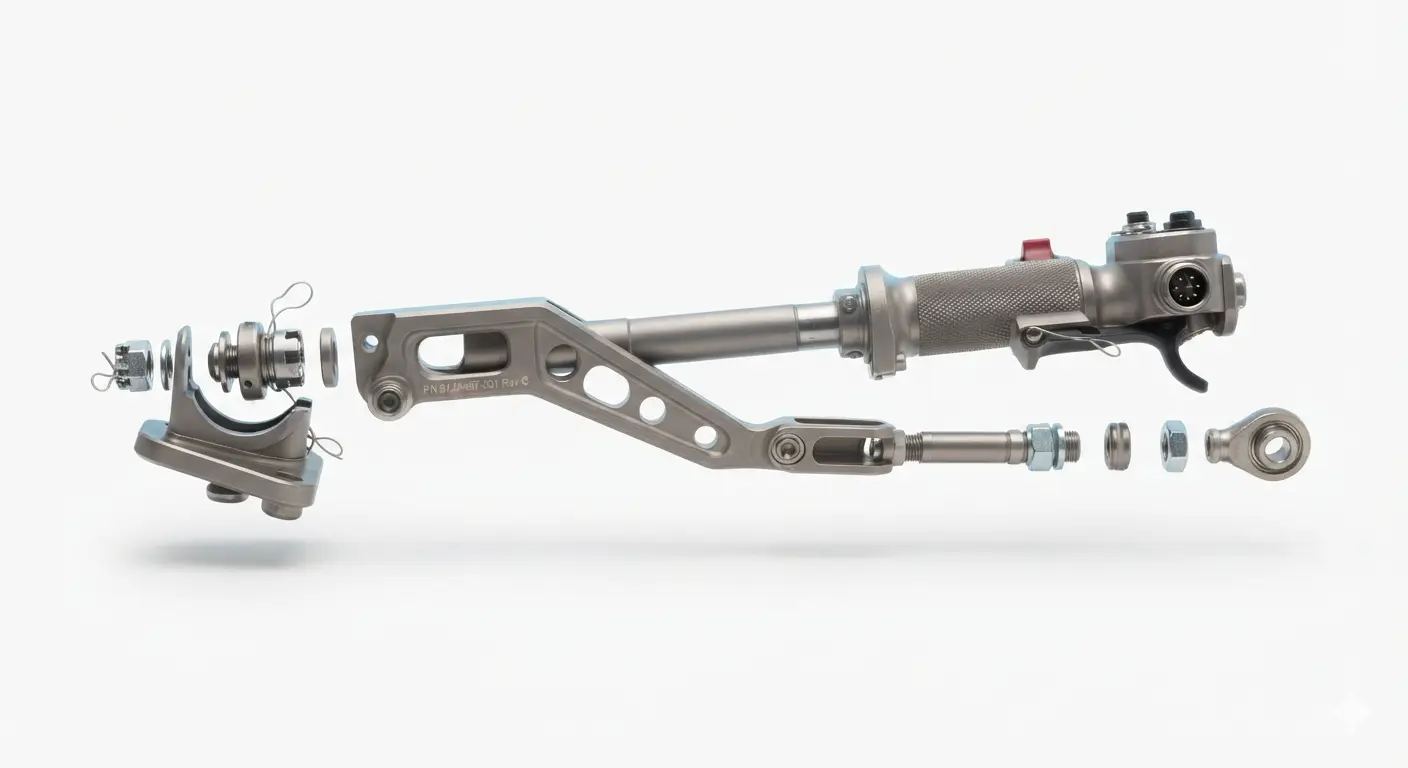

Macro detail of FD-7042 pivot housing and cotter-pinned fastener

Pivot housing, cotter-pinned and torque-verified

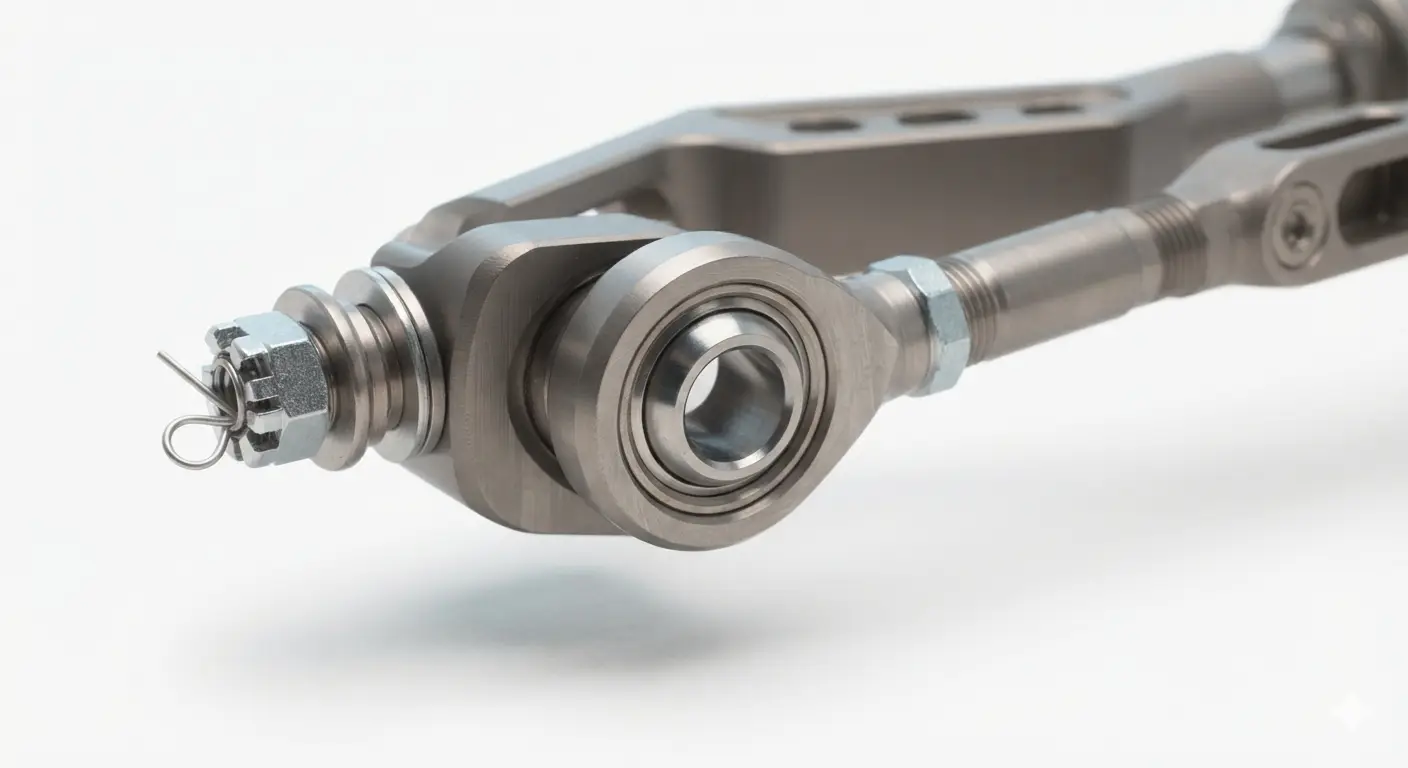

Macro detail of spherical rod-end bearing at the FD-7042 lever joint

Spherical rod-end, zero-backlash pivot

12,000

Flight hours qualified life

±0.02mm

Machining tolerance, bearing bore

175

Degree operating temperature span

SUPPLY CHAIN

Components and subsystems sourced through

General Dynamics OTS Honeywell Aerospace Safran Electronics & Defense Moog Inc.

COMPLIANCE

Process discipline, not paperwork.

ITAR-registered production U.S. Department of State registered manufacturer
AS9100-aligned quality system Full first-article inspection on every design release
Material traceability Mill certificate to finished-part serial, retained 20 years
Non-destructive testing Magnetic particle and dye-penetrant inspection in-house

Specify Ferrum Dynamics on your next platform.

Send program requirements and we return a technical datasheet with load, life, and interface data.
